Shok Trike 500w. 48v.-13Ah. / 3 wheel electric fat bike. ASSEMBLE

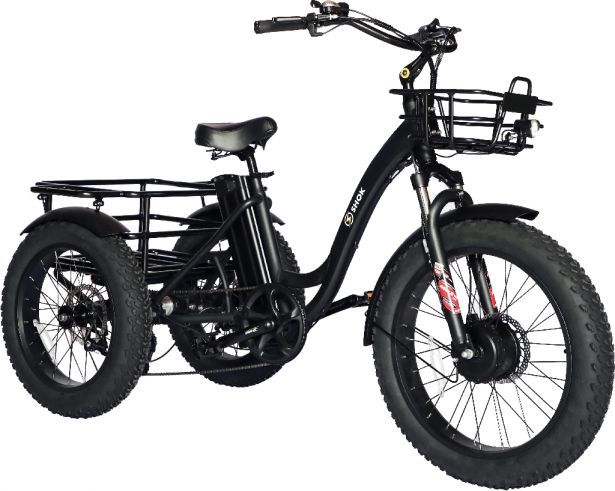

SHOK Triode - 3-Wheel Ebike / Trike, 48V, 500W, 13Ah 624Wh.

Fully equipped with 48V 500W brushless motor, LCD display, alloy crown fork suspension, Shimano 7 speed set, KMC chain, Wuxing levers and a very large profile, comfortable seat. Promax aluminum low profile seat post, aluminum handlebars, aluminum rims and fully aluminum low step-through frame design produces a high power to weight ratio. Lighter weight decreases battery usage and extends user range while creating an overall smoother ride; also makes it easier to store/manoeuvre when not in use.

Easily adjustable seat and handlebar heights further facilitate storage while accommodate all rider sizes. Large chainwheel saves energy when pedalling. All-weather, all-season, all-terrain Innova tires. Integrated rear differential to synchronize wheel speed around corners. Large front and rear storage baskets for high hauling capacity. Powerful, low profile, classic SHOK design, the SHOK Triode is the next level in entry step-through 3 wheel ebikes / trikes.

• Front Tire - Innova 24x4.0
• Rear Tire - Two Innova 20x4.0
• Front Innertube - Innova 24x4.0
• Rear Innertube - Two Innova 20x4.0
• Front Rim - 24" x 4.0 Aluminum Alloy
• Rear Rims - Two 20" x 4.0 Aluminum Alloy
• Front Suspension - Zoom, Aluminum Alloy Crown and Leg Fork Suspension
• Chain - Bicycle, KMC, 138 Link
• Freewheel - Cassette, Shimano 7-Speed Multiple Sprocket (AMFTZ5007428)
• Shifter - Shimano Tourney 7 Speed Shifter (ASLTX50R7CT)
• Derailleur - Shimano Tourney 7 Speed Derailleur (ARDTY300D)
• Crankset - 52T, Forged Aluminum AL-6061-T6 Gears
• Electric Motor - 48V, 500W Brushless Geared Rear Hub Motor
• Display - LCD Instrument Panel, 1.8" Screen, IP65. Selections: 5 Speeds, Battery Power, Max Speed, and Distance Indicator.
• Battery Pack - 48V, 13Ah, 624Wh, DC2.1 Port Profile, Lithium Ion
• Battery Management System - BMS, 48V, Continuous
• Controller - 48V, Square Wave
• Maximum Speed - 32km/h
• Throttle Assembly - Electric Thumb Throttle Unit + PAS Sensor
• Charger - 48V, 2A, Lithium Ion, DC2.1, UL/ULC
• Frame - Aluminum Alloy #6061
• Handlebar - Aluminum Alloy, 650mm
• Seat Post - Seat Support Stem, Promax Low Profile Adjustable 6061 Aluminum Alloy
• Foot Pedals - Aluminum Alloy
• Brakes - Front Mechanical and Rear Double Mechanical Disc Brakes
• Brake Rotor - 180mm
• Brake Levers - Electric Motor Signal Termination Enabled, Aluminum Alloy, Wuxing
• Seat - Black Leather, Extra Large, Ultra soft / Thick / Plush
• Seated Capacity - 120kg (265lbs)
• Front Basket Capacity - 15kg (33lbs)
• Rear Basket Capacity - 30kgs (66lbs)
• Rear differential - Included
• Front Light - LED Headlight Included
• Rear Light - LED Taillight Included
• Front Fender / Front Wheel Cover - Included
• Rear Fenders / Rear Wheel Covers - Two Included
• Rear Carrier / Rear Rack - Included
• Rear Cargo Bag - Included
• Design - Matte Black
